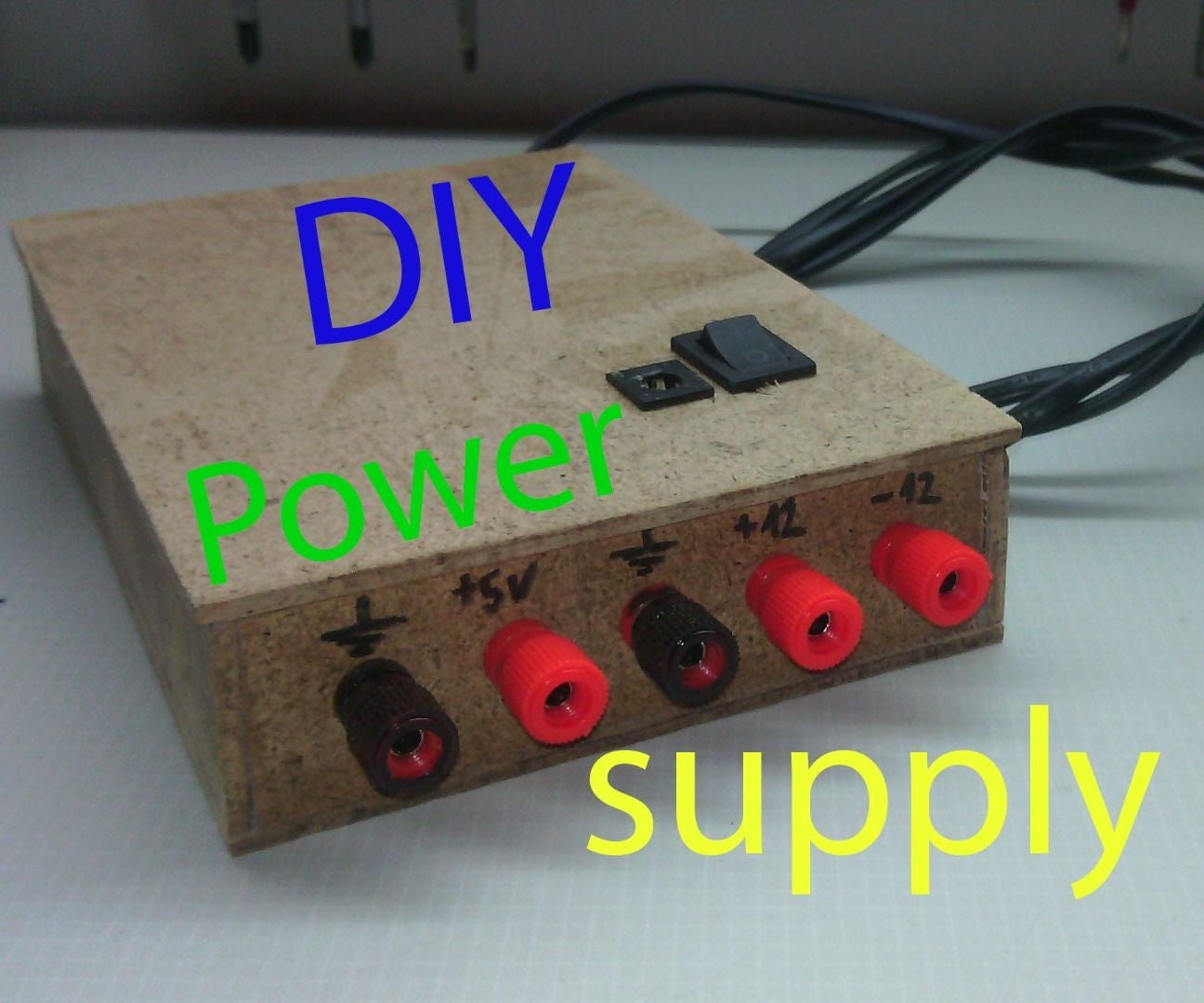

Diy Power Supply

A DIY power supply is a power supply that is built by hand, typically using electronic components such as transformers, rectifiers, and capacitors. DIY power supplies can be used for a variety of purposes, such as powering electronic devices, charging batteries, or running experiments.

There are many different ways to build a DIY power supply, but the basic concept is the same: convert AC from a wall outlet to DC voltage that can be used to power electronic devices. This can be done using a variety of different components and circuits, but the most common approach is to use a transformer to step down the voltage from the wall outlet to a lower level, and then use a rectifier to convert the AC voltage to DC voltage.

Once the AC voltage has been converted to DC voltage, it can be filtered and regulated to provide a clean, consistent voltage to the powered devices. This is typically done using a capacitor filter and a voltage regulator.

DIY power supplies can be relatively simple to build, but it is important to follow safety precautions when working with high voltage electricity. It is also important to have a good understanding of electronics before attempting to build a DIY power supply.

Here are some tips for building a DIY power supply:

• Use high-quality components that are rated for the voltage and current you will be using.
• Make sure that the power supply is properly isolated from the wall outlet to avoid electrical shock.
• Use a fuse or other protection device to protect the power supply from overcurrent.
• Test the power supply carefully before using it to power any electronic devices.

If you are interested in building a DIY power supply, there are many resources available online and in libraries. There are also many different kits available that can make it easier to build a power supply.
