Diy Kayak Anchor Trolley

A DIY kayak anchor trolley is a simple system that allows you to easily deploy and retrieve your anchor from your kayak. It is made up of a rope, two pulleys, and a carabiner. The rope is run through the pulleys and attached to the kayak at two points. The anchor is attached to the carabiner at the end of the rope. To deploy the anchor, simply pull on the rope until the anchor reaches the bottom. To retrieve the anchor, simply reverse the process.

To make a DIY kayak anchor trolley, you will need:

• 550 paracord
• Two miniature pulleys
• One inch and a half metal ring
• Figure 9 carabiner
• Heat shrink tube

Instructions:

1. Cut two pieces of paracord, each 18 inches long.
2. Thread one end of each piece of paracord through a pulley.
3. Cinch both ends of each piece of paracord and heat shrink the ends.

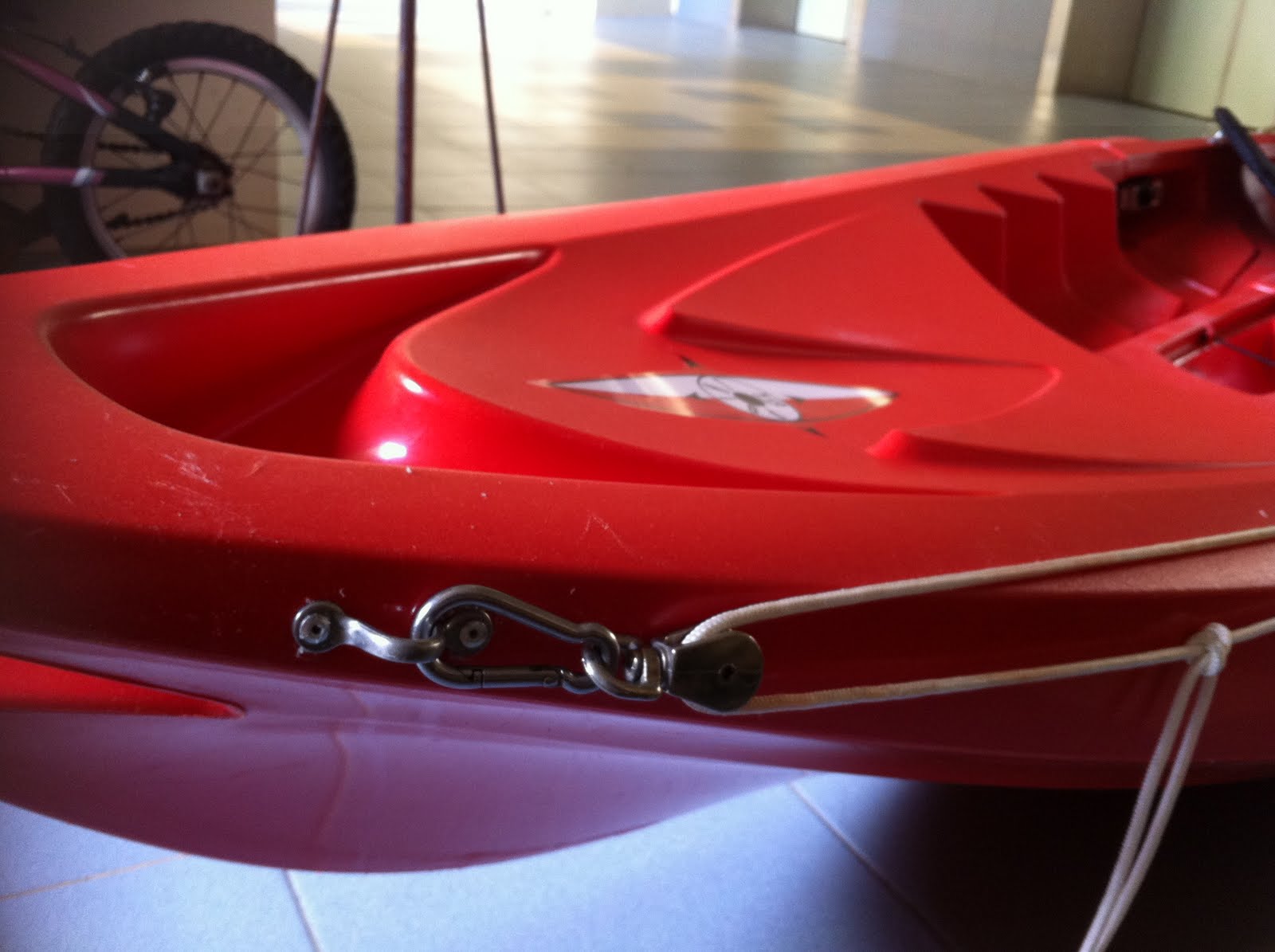

4. Attach the pulleys to the kayak at two points, one at the bow and one at the stern.
5. Thread the metal ring through both pieces of paracord.
6. Attach the carabiner to the metal ring.
7. Tie the anchor to the carabiner.

To deploy the anchor, simply pull on the rope until the anchor reaches the bottom. To retrieve the anchor, simply reverse the process.

Here are some tips for using a DIY kayak anchor trolley:

• Use a heavy enough anchor to hold your kayak in place.
• Make sure the anchor line is long enough to reach the bottom of the water where you want to anchor.
• Be aware of the currents and wind when anchoring.
• Always wear a life jacket when kayaking.

With a little practice, you will be able to deploy and retrieve your anchor quickly and easily with your DIY kayak anchor trolley.
